BXK100/140/200 Industrial scale chromatography column

Description

Download

Reviews

1. Introduction

The BXK100/140/200 series chromatography column is specially designed for the pilot scale test and production of biopharma customers with high precision sanitary grade chromatography column, suitable for filling all kinds of media and low pressure chromatography media.

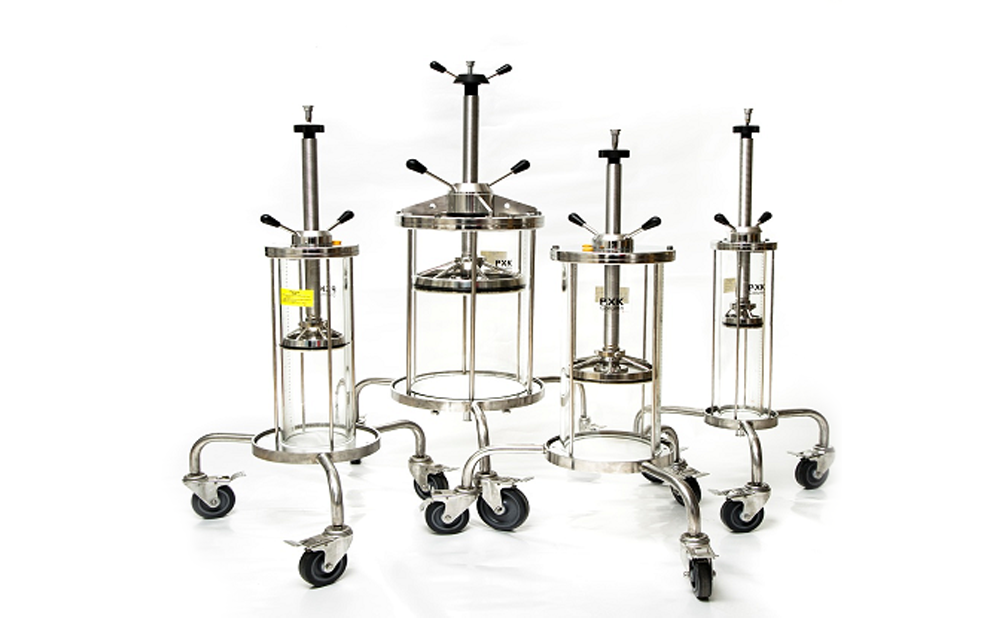

BXK chromatography column is composed of three parts: adaptor, column body and stand. The basic structure includes glass tube, flange, O-ring, filter nets, support nets, end-piece and rods. The rods hold the flange and end-piece to the glass tube which is sealed by O-rings. The O-ring can not only avoid the direct contact between the glass tube and the end-piece, but also ensure the sealing of the glass tube.

The adaptor and end-piece are of a single pipe design. The adaptor and end-piece are covered with a large aperture support net and a fine aperture filter net. Filter net whose pore diameter is 23μm (polypropylene) or 10μm (nylon) can be selected.

Different column heights can be set by adjusting the height of column head. The column is sealed by compressing or loosening the cylinder seal ring.

The end-piece is mounted on the stand, which is equipped with a universal wheel for easy movement. The foot brake on the universal wheel can fix the column.

The BXK100/140/200 series chromatography column is a series of glass chromatography columns developed for production scale by Bestchrom.All the chromatographic column materials meet the requirements of SFDA for pharmaceutical manufacturers, so it is an ideal choice for industrial production.Listed are main characteristics of this series of chromatography columns:

① The stainless steel parts of the chromatographic column are all made of medical grade 316L stainless steel.

② The glass tube body adopts the original Schott imported high-precision medical glass, the roundness error is less than 0.1mm.

③ The upper screen mesh, the lower screen mesh and the supporting mesh are made of original imported materials, which can withstand a variety of acid and alkali solutions and organic solvents.

④ O-ring using EPDM material, good airtightness, more durable.

⑤ Adaptor can make column bed height adjustable.

All parts of the chromatography column above have complete material certification, all meet the needs of the pharmaceutical industry.

2. Technical Characteristics

Specifications	Diameter (mm)	Floor area (cm²)	Column Hight (cm)	Bed height（cm）		Volume(L)		Max Pressure (bar/g)	Total weight (kg)	Chromatographic column inlet dimension	Adaptor weight (kg)	Outline dimension (cm) D×W×H
Specifications	Diameter (mm)	Floor area (cm²)	Column Hight (cm)	Min	Max	Min	Max	Max Pressure (bar/g)	Total weight (kg)	Chromatographic column inlet dimension	Adaptor weight (kg)	Outline dimension (cm) D×W×H
BXK100/500	100	78.5	50	2	35	0.2	2.8	8	17.2	4mm	6.6	48×48×127
BXK100/750	100	78.5	75	27	57	2.1	4.5	8	18.6			48×48×152
BXK100/950	100	78.5	95	47	74.7	3.7	5.8	8	22.7			48×48×172
BXK140/500	140	154	50	2	35.6	0.3	5.5	6	29.1	6mm	10.5	59×59×127
BXK140/750	140	154	75	27	57	4.2	8.8	6	31.5			59×59×152
BXK140/950	140	154	95	47	74.7	7.2	11.5	6	33.4			59×59×172
BXK200/500	200	314	50	2	35.6	0.6	11.2	6	36.5	6mm	20.5	59×59×127
BXK200/750	200	314	75	27	57	8.5	18	6	40.1			59×59×152
BXK200/950	200	314	95	47	74.7	14.8	23.5	6	42.2			59×59×172

Specifications	Supporting net	Screen	Column tube	Seal ring	Holder
BXK100/500	PP	10μm nylon（PA） 23μm PP	Glass	EPDM	316L
BXK100/750
BXK100/950
BXK140/500	PP	10μm nylon（PA） 23μm PP	Glass	EPDM	316L
BXK140/750
BXK140/950
BXK200/500	PP	10μm nylon（PA） 23μm PP	Glass	EPDM	316L
BXK200/750
BXK200/950

3. Order Information

Product	Batch No	Pack/unit
BXK100/500（10μm）	BC536211	1
BXK100/500	B-100500	1
BXK100/750（10μm）	BC538211	1
BXK100/750	B-100750	1
BXK100/950（10μm）	BC539211	1
BXK100/950	B-100950	1
BXK140/500（10μm）	BC636211	1
BXK140/500	B-140500	1
BXK140/750（10μm）	BC638211	1
BXK140/750	B-140750	1
BXK140/950（10μm）	BC639211	1
BXK140/950	B-140950	1
BXK200/500（10μm）	BC736211	1
BXK200/500	B-200500	1
BXK200/750（10μm）	BC738211	1
BXK200/750	B-200750	1
BXK200/950（10μm）	BC739211	1
BXK200/950	B-200950	1
Adaptor O-ring（100 column）	BS530012	2
10μmNet,adaptor（100）	BS520012	2
10μm Net, end piece（100 columns）	BS520032	2
23μmNet,adaptor（100 columns）	BS520022	2
23μm Net, end piece（100 columns）	BS520042	2
Support net,adaptor（100columns）	BS520052	2
Support net, end piece（100columns）	BS520062	2
Glass tube（100/500columns）	BS516001	1
Glass tube（100/750columns）	BS518001	1
Glass tube（100/950columns）	BS519001	1
BXK100 Stand（With wheels）	BS540001	1
Adaptor O-ring（140columns）	BS630012	2
10μm Net,adaptor（140columns）	BS620012	2
10μm Net, end piece（140columns）	BS620032	2
23μm Net,adaptor（140columns）	BS620022	2
23μm Net, end piece（140columns）	BS620042	2
Support net,adaptor（140columns）	BS620052	2
Support net, end piece（140columns）	BS620062	2
Glass tube（140/500columns）	BS616001	1
Glass tube（140/750columns）	BS618001	1
Glass tube（140/950columns）	BS619001	1
BXK Stand（With wheels）	BS640001	1
Adaptor O-ring（200columns）	BS730012	2
10μm Net,adaptor（200columns）	BS720012	2
10μm Net, end piece（200columns）	BS720032	2
23μm Net,adaptor（200columns）	BS720022	2
23μm Net, end piece（200columns）	BS720042	2
Support net,adaptor（200columns）	BS720052	2
Support net, end piece（200columns）	BS720062	2
Glass tube（200/500columns）	BS716001	1
Glass tube (200/750columns）	BS718001	1
Glass tube（200/950columns）	BS719001	1
BXK200 Stand（With wheels）	BS740001	1
100 Reservoir	B-100-01	1
140 Reservoir	B-140-01	1
200 Reservoir	B-200-01	1
Four-point two-way valve,6mm	B-006	1
Four-point two-way valve,10mm	B-010	1
Four-point two-way valve,6mm	BA210021	1
Four point four way valve,10mm	BA220021	1
1"Stainless steel clamp	B-0011	1
1"Stainless steel clamp	BA500016	10
Gasket（TC25,6.9mm）	B-018	2
Gasket（TC25,6.9mm）	BA500036	10
Gasket（TC25,12.5mm）	BA500052	2
Gasket（TC25,12.5mm）	BA500056	10
Blind board（TC25）	B-B019	2
Blind board（TC50）	BA500072	2
Pressure gauge（TC25 interface,6bar）	BA500081	1
Pressure gauge（TC25 interface,10bar）	BA500091	1
Pressure gauge（TC50 interface,6bar）	BA500191	1
Pressure gauge（TC50 interface,10bar）	BA500181	1
Three-way（TC25Stainless steel T type）	BA500101	1
Three-way（TC25/TC50Stainless steel T type）	BA500111	1
TC joint PVC pipe,6mm,1.5M	B-0013	1
TC joint PVC pipe,6mm,2M	BA187001	1
TC joint PVC pipe,10mm,1.5M	B-0014	1
TC joint PVC pipe,10mm,2M	BA197001	1
TC connector silicone pipe,6mm,1.5M	B-0015	1
TC connector silicone pipe,6mm,2M	BA187011	1
TC connector silicone pipe,10mm,1.5M	B-0016	1
TC connector silicone pipe,10mm,2M	BA197011	1
Glue stick（80mmplate）	BA500011	1
Glue stick（150mmplate）	BA500021	1
end-piece O-ring（100columns）	BS530021	1
Adaptor O-ring（100columns）	BS530031	1
end-piece O-ring（140columns）	BS630021	1
Adaptor O-ring（140columns）	BS630031	1
end-piece O-ring（200columns）	BS730021	1
Adaptor O-ring（200columns）	BS730031	1
End-piece（100columns）	B100500-12	1
End-piece（140columns）	B140500-12	1
End-piece（200columns）	B200500-12	1
Outer adaptor tube（100columns）	B100500-31	1
Outer adaptor tube（140columns）	B140500-31	1
Outer adaptor tube（200columns）	B200500-31	1
Adjuster nut, insert（100columns）	B100500-22	1
Adjuster nut, insert（140columns）	B140500-22	1
Adjuster nut, insert（200columns）	B200500-22	1
Adaptor plate（100columns）	B100500-34	1
Adaptor plate（140columns）	B140500-34	1
Adaptor plate（200columns）	B200500-34	1
