Diamond Butyl

Diamond Butyl

Product Characteristics

  • HIC resin using Butyl as its ligands
  • Suitable for the capture and intermediate purification of proteins, which require HIC resins with low and intermediate hydrophobicity
  • High rigid agarose matrix, enjoys high flow rate and low back pressure
  • Different binding capacity and selectivity compared with Butyl Bestarose FF resin
Request a Quote
Description
Download
Reviews

1. Introduction

Hydrophobic interaction chromatography (HIC) is a chromatographic method that uses the interaction between the hydrophobic groups carried by biological molecules and the hydrophobic ligands on the stationary phase to separate substances. Salt ions can destroy the hydration membrane on the surface of biomolecules and promote the binding between hydrophobic groups and ligands.

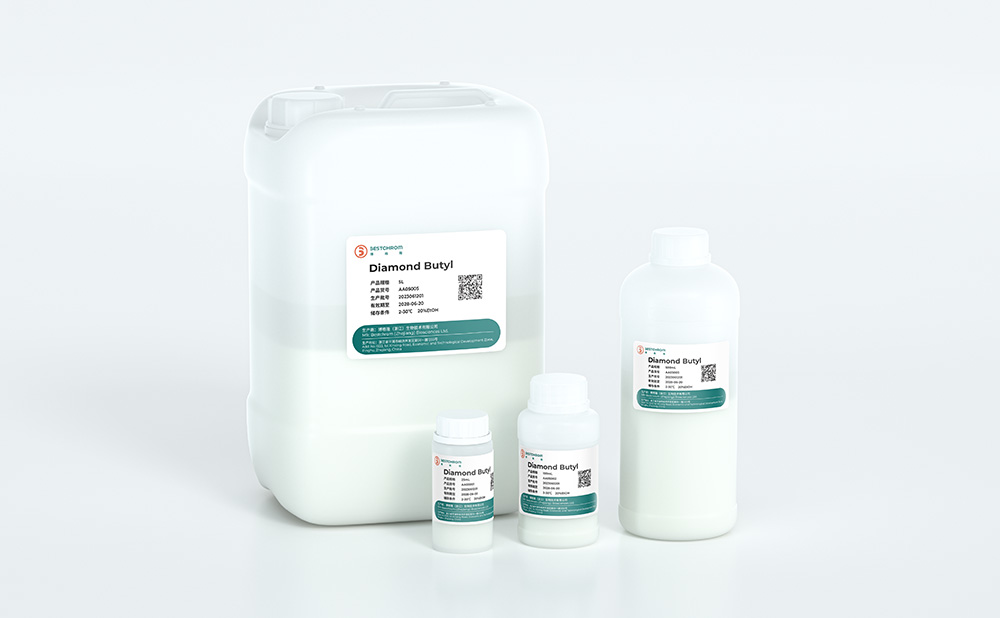

Diamond Butyl is formed by coupling weakly hydrophobic aliphatic butyl groups on high-rigidity agarose matrix. It has low back pressure and fast flow velocity, which is suitable for large-scale purification of highly hydrophobic biomolecules.

2. Technical characteristics

Appearance

White slurry

Matrix

Highly cross-linked rigid agarose

Functional group

Butyl

Ligand concentration

~53μmol Ligand/mL resin

Dynamic binding capacity

~27mg BSA/mL packed resin

Particle size +

40~120μm

Max. pressure

0.5MPa

Pressure flow velocity

≥1200cm/h(0.5MPa BXK 100/500, H=20cm, 20℃)

Chemical stability

Stable in common aqueous buffers: 1M NaOH++,1M HAc++,6M GuHCl,30% isopropyl alcohol,70% ethanol

pH stability

2~14(CIP),3~13 (working)

Operating temperature

Operating temperature: 2~40℃, do not freeze, Can tolerate 121℃ autoclaving (20min)

Storage+++

2~30℃,20% ethanol or 2% benzyl alcohol

Recommended flow velocity

150~350cm/h



+Particle size is normally distributed, and particles within this range account for more than 75% of the total.

++1M NaOH and 1M HAc only be used for cleaning.

+++ 2% benzyl alcohol is only used for international transport or special requirements from customer.



3. Order information

Product

Cat. No.

Pack size

Diamond Butyl

AH0111

25mL

AH0112

100mL

AH303311

500mL

AH0113

1L

AH303313

5L

AH303314

10L

AH303315

20L

AH303316

40L



Prepacked columns

Cat. No.

Pack size

EzFast Diamond Butyl

EH01121

1×1mL

EH303351

5×1mL

EH303303

1×5mL

EH303353

5×5mL

EzScreen Diamond Butyl

EH01125

1×4.6mL

EH01135

5×4.6mL

EzLoad 16/10 Diamond Butyl

EH303204

1 pcs

EzLoad 26/10Diamond Butyl

EH303206

1 pcs
