Hydrophobic interaction chromatography (HIC) is a chromatographic method that uses the interaction between the hydrophobic groups carried by biological molecules and the hydrophobic ligands on the stationary phase to separate substances. Salt ions can destroy the hydration membrane on the surface of biomolecules and promote the binding between hydrophobic groups and ligands.

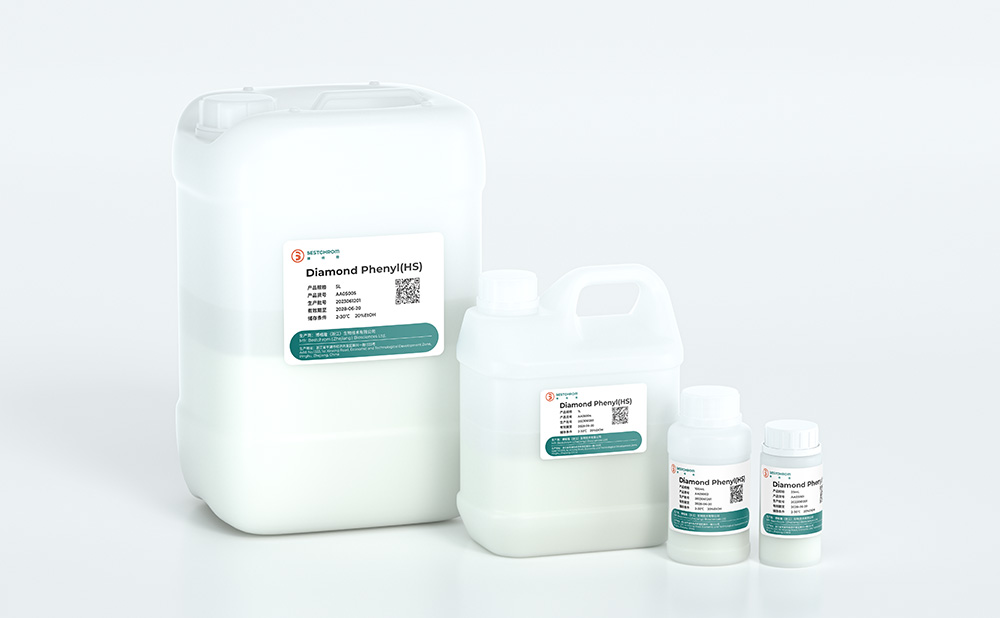

Diamond Phenyl (HS) is a phenyl group with high substitution and strong hydrophobicity based on high rigid agarose. It has low back pressure and fast flow velocity. It is suitable for large-scale separation and purification of biomolecules.
Appearance |
White slurry |
Matrix |
High rigidity agarose |
Functional group |
Phenyl |
Particle size+ |
40~120μm |
Ligand concentration |
~27μmol Ligand/mL resin |
Dynamic binding capacity |
~27 mg BSA/mL packed resin |
Max. pressure |
0.5MPa |
Pressure flow velocity |
≥1200cm/h(0.5MPa BXK 100/500, H=20cm, 20℃) |
Chemical stability |
Stable in common aqueous buffers: 1M NaOH++,1M HAc++,6M GuHCl,30% isopropyl alcohol,70% ethanol |
pH stability |
2~14(CIP),3~13(working) |
Operating temperature |
Operating temperature: 2~40℃, do not freeze, Can tolerate 121℃ autoclaving (20min) |
Storage+++ |
2~30℃, 20% ethanol or 2% benzyl alcohol |
Recommended flow velocity |
150~350cm/h |
+Particle size is normally distributed, and particles within this range account for more than 75% of the total.
++1M NaOH and 1M HAc only be used for cleaning.
+++ 2% benzyl alcohol is only used for international transport or special requirements from customer.
Product |
Cat. No. |
Pack size |
Diamond Phenyl(HS) |
AH321305 |
25mL |
AH321307 |
100mL |
|
AH321311 |
500mL |
|
AH321312 |
1L |
|
AH321313 |
5L |
|
AH321314 |
10L |
|
AH321315 |
20L |
|
AH321316 |
40L |
Prepacked columns |
Cat. No. |
Pack size |
EzFast Diamond Phenyl (HS) |
EH01021 |
1×1mL |
EH321351 |
5×1mL |
|
EH321303 |
1×5mL |
|
EH321353 |
5×5mL |
|
EzScreen Diamond Phenyl(HS) |
EH01025 |
1×4.6mL |
EH01035 |
5×4.6mL |
|
EzLoad 16/10 Diamond Phenyl(HS) |
EH321304 |
1 pcs |
EzLoad 26/10 Diamond Phenyl(HS) |
EH321306 |
1 pcs |
