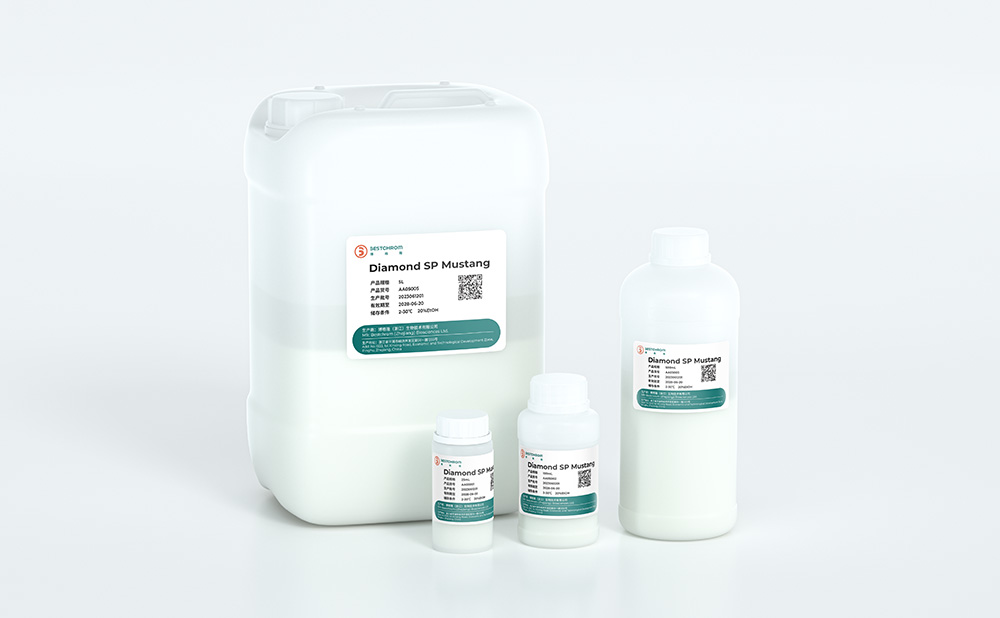

Diamond SP Mustang

Diamond SP Mustang

Product Characteristics

  • Strong CEX resin with high resolution
  • High rigid agarose matrix, applicable in the intermediate purification and polishing of samples on production scale.
  • Good mechanical and chemical stability, long working life.
  • Widely applicable in the polishing of macro-biomolecules including recombinant proteins and antibodies in bio-pharmaceuticals and bio-engineering.
Request a Quote
Description
Download
Reviews

1. Introduction

Ion exchange (IEX) chromatography is a very effective method for the separation and purification of biomolecule. The method mainly relies on the interaction between positive and negative charges, and uses the charge properties and differences of different biological molecules under specific conditions to separate them. It has the characteristics of high load, good resolution, controllable condition and easy scale-up. It has been widely used in medicine, chemical industry, metallurgy, food and other fields.

IEX resin is composed of three parts: (1) Cross-linked agarose matrix, that has the characteristics of porous, hydrophilic and good chemical stability, through the modification to traditional agarose molecules, it has stronger mechanical properties, which is called high rigid agarose, namely Diamond matrix. (2)Functional groups fixed to the matrix, which are electrically charged groups, determining the properties of the IEX resin. (3)An ion (called an equilibrium ion) that has an opposite charge to the functional group and can be reversibly bound to the functional group.

Diamond SP Mustang is a strong cation exchange resin formed by coupling sulfopropyl to a fine, high rigidity agarose microsphere with a higher resolution than Diamond SP, which is suitable for fine or medium purification in the chromatography process.



2. Technical characteristics

Appearance

White slurry

Matrix

High rigidity agarose

Functional group

Sulfopropyl

Average particle size+

36-44μm

Ionic capacity

130~160μmol H+/mL packed resin

Dynamic binding capacity

> 70 mg lysozyme/mL packed resin

> 95mg BSA/mL packed resin

Max. pressure

0.5MPa

Pressure flow velocity

≥450cm/h(0.5MPa, BXK100/500, H=20cm,20℃)

Chemical Stability

Stable in common aqueous buffers: 1M NaOH++,1M HAC++,70% ethanol, 20% ethanol, 6M GuHCl, 8M Urea, 100mM thioglycerol+25mM Tris pH8.5, 0.1M citric acid+8M urea+1M NaCl pH2.5

Avoid contact with oxidizing agents, cationic detergents.

pH stability

3~14(CIP), 4~12 (Working)

Operating temperature

Operating temperature:2~40℃, Can't freeze, Can tolerate 121℃ autoclaving (20 min)

Storage+++

2~30℃, 20% ethanol with 0.2M NaAc or 2% benzyl alcohol with 0.2M NaAc

Recommend flow velocity

100~300cm/h



+ Average particle size is the accumulated resin particle size of packing volume distribution.

++1M NaOH and 1M HAc only be used for cleaning.

+++2% benzyl alcohol is only used for international transport or special requirements from customer.



3. Order information

Product

Cat. No.

Pack size

Diamond SP Mustang

AI0191

25mL

AI0192

100mL

AI303211

500mL

AI0193

1L

AI0194

5L

AI0195

10L

AI303215

20L

AI303216

40L



Prepacked columns

Cat. No.

Pack size

EzFast SP Mustang

EI01921

1×1mL

EI303251

5×1mL

EI303203

1×5mL

EI303253

5×5mL

EzScreen SP Mustang

EI01925

1×4.6mL

EI01935

5×4.6mL

EzLoad 16/10 SP Mustang

EI303204

1 pcs

EzLoad 26/10 SP Mustang

EI303206

1 pcs
