Ion exchange (IEX) chromatography is a very effective method for the separation and purification of biomolecule. The method mainly relies on the interaction between positive and negative charges, and uses the charge properties and differences of different biological molecules under specific conditions to separate them. It has the characteristics of high load, good resolution, controllable condition and easy scale-up. It has been widely used in medicine, chemical industry, metallurgy, food and other fields.
IEX resin is composed of three parts: (1) Cross-linked agarose matrix, that has the characteristics of porous, hydrophilic and good chemical stability. (2) Functional groups fixed to the matrix, which are electrically charged groups, determine the properties of the IEX resin. (3)An ion (called an equilibrium ion) that has an opposite charge to the functional group and can be reversibly bound to the functional group.

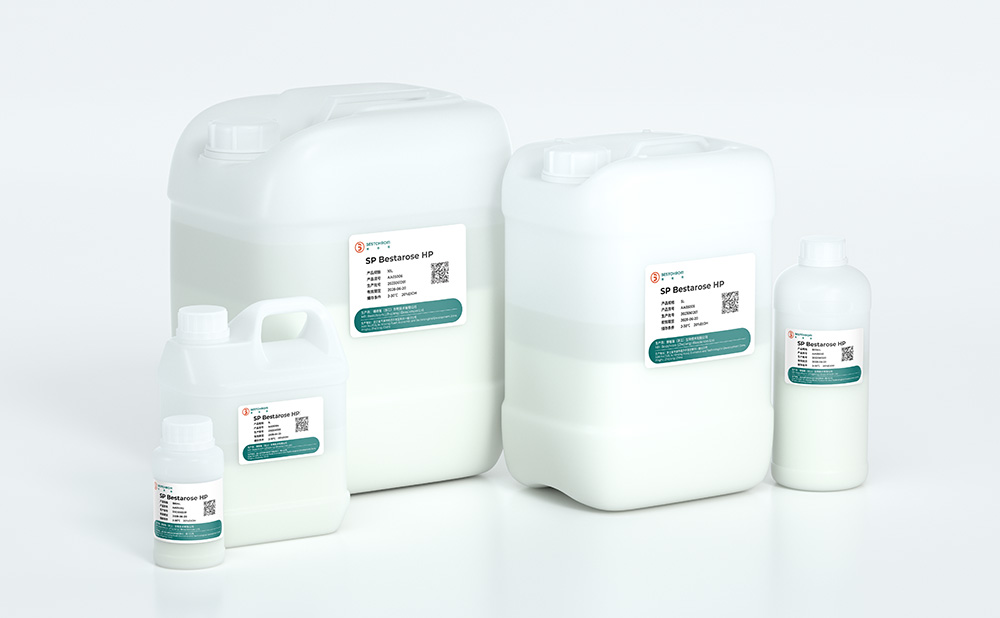

SP Bestarose HP (high performance) is a strong cation exchange resin formed by coupling sulfopropyl groups on fine-grained high-resolution agarose microspheres.
Appearance |
White slurry |
Matrix |
Cross-linked agarose, 6% |
Functional group |
Sulfopropyl |
Particle size+ |
24~44μm (the average particle size is 34μm) |
Ionic capacity |
150~200μmol H+/mL packed resin |
Dynamic binding capacity++ |
~ 70 mg BSA/mL resin |
Max. pressure |
0.3MPa |
Chemical Stability |
Stable in common aqueous buffers: 1M NaOH+++,1M HAC+++,6M GuHCl, 30%isopropyl alcohol, 70% ethanol Avoid contact with oxidizing agents, cationic detergents. |
pH stability |
3~14(CIP), 4~13(working) |
Operating temperature |
Operating temperature:2~40℃, do not freeze. |
Storage++++ |
2~30℃, 20% ethanol + 0.2M NaAc or 2% benzyl alcohol + 0.2M NaAc |
Recommended flow velocity |
60-150cm/h |
+ Average particle size is the accumulated resin particle size of packing volume distribution.
++ In EzScreen 4.4mL column with column height of 10cm, 10%BSA dynamic binding load at 100mM NaHAc pH9 flow velocity of 1mL /min,
+++1M NaOH and 1M HAc only be used for cleaning.
++++2% benzyl alcohol is only used for international transport or special requirements from customer.
Product |
Cat. No. |
Pack size |
SP Bestarose HP |
AI0080 |
25mL |
AI0081 |
100mL |
|
AI0082 |
500mL |
|
AI0083 |
1L |
|
AI0084 |
5L |
|
AI0085 |
10L |
|
AI203115 |
20L |
|
AI203116 |
40L |
Prepacked columns |
Cat. No. |
Pack size |
EzFast SP HP |
EI00821 |
1×1mL |
EI036 |
5×1mL |
|
EI203103 |
1×5mL |
|
EI037 |
5×5mL |
|
EzScreen SP HP |
EI00825 |
1×4.6mL |
EI00835 |
5×4.6mL |
|
EzLoad 16/10 SP HP |
EI039 |
1 pcs |
EzLoad 26/10 SP HP |
EI040 |
1 pcs |
