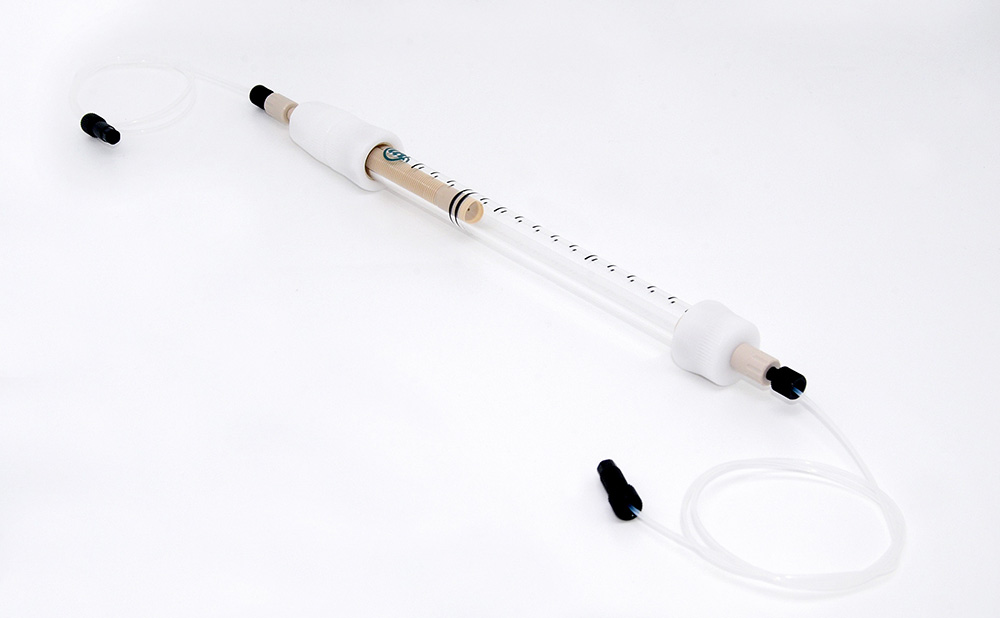

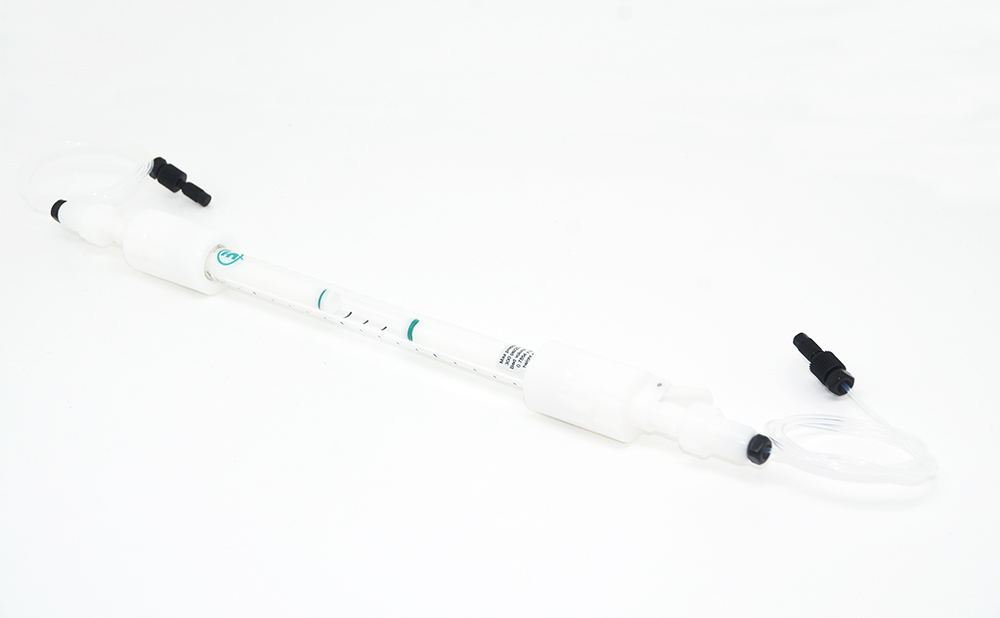

BHG5.0/6.6/10 is high pressure lab scale chromatography columns designed according to customer preference. The column has smaller CV compared to BXK columns, which enables its application in the R&D stages of macromolecules including recombinant protein, antibody, vaccine, blood products, as well as micro-molecules such as antibiotics, peptides,synthetic drugs and other natural substances. The column can be packed with agarose based resins (i.e. Bestarose, Diamond resins) and polymer based resins, facilitating easier connection to AKTA systems. The column is composed of high borosilicate glass tube and PEEK accessories, enabling good tolerance towards various types of acid/alkaline solutions and organic solvents, as a result of its excellent bio-compatibility and chemical stability.
Advantages:
1) BHG5.0/6.6 columns use high precision glass and provide higher accuracy in measurement of CV.
2) All plastic parts used in upper/lower adaptors are made of PEEK, the design of double O-rings ensures good sealing.
3) Rotatable adaptor, offering easier height adjustment and more convenience in column packing.
|
Column |
ID |
Height |
Column Volume |
Bed height |
Operating pressure |
Operating temperature |
pH Stability |
Sieve plate aperture |
Chemical stability |
|
BHG5.0/15 |
5 |
150 |
1.2-2.4 |
6.0-12.0 |
90 |
2-40 |
1-14 |
10 |
Common aqueous solution |
|
BHG5.0/25 |
5 |
250 |
3.1-4.3 |
16.0-22.0 |
90 |
||||
|
BHG5.0/33 |
5 |
330 |
4.7-5.9 |
24.0-30.0 |
90 |
||||
|
BHG5.0/15 Plus |
5 |
150 |
0-2.4 |
0-12.0 |
90 |
||||
|
BHG5.0/25 Plus |
5 |
250 |
2.0-4.3 |
10.0-22.0 |
90 |
||||
|
BHG5.0/33 Plus |
5 |
330 |
3.5-5.9 |
18.0-30.0 |
90 |
||||
|
BHG6.6/15 |
6.6 |
150 |
1.2-4.1 |
3.5-12.0 |
62 |
||||
|
BHG6.6/25 |
6.6 |
250 |
4.6-7.5 |
13.5-22.0 |
62 |
||||
|
BHG6.6/33 |
6.6 |
330 |
7.4-10.3 |
21.5-30.0 |
62 |
||||
|
BHG6.6/40 |
6.6 |
400 |
9.7-12.7 |
28.5-37 |
62 |
||||
|
BHG6.6/15 Plus |
6.6 |
150 |
0-4.1 |
0-12.0 |
62 |
||||
|
BHG6.6/25 Plus |
6.6 |
250 |
1.5-7.5 |
4.5-22.0 |
62 |
||||
|
BHG6.6/33 Plus |
6.6 |
330 |
4.3-10.3 |
12.5-30.0 |
62 |
||||
|
BHG6.6/40 Plus |
6.6 |
400 |
6.7-12.7 |
19.5-37.0 |
62 |
||||
|
BHG10/20 |
10 |
200 |
6.3-13.0 |
8-16.5 |
40 |
2-40 |
1-14 |
10 |
Common aqueous solution |
|
BHG10/30 |
10 |
300 |
14.1-20.8 |
18-26.5 |
40 |
||||
|
BHG10/40 |
10 |
400 |
22.0-28.7 |
28-36.5 |
40 |
||||
|
BHG10/20 Plus |
10 |
200 |
0-13.0 |
0-16.5 |
40 |
||||
|
BHG10/30 Plus |
10 |
300 |
7.5-20.8 |
9.5-26.5 |
40 |
||||
|
BHG10/40 Plus |
10 |
400 |
15.3-28.7 |
19.5-36.5 |
40 |
Note: An additional 25μm hydrophilic sieve plate is included with the shipment.
|
Upper/Lower tubing |
Adapter shaft |
Connection cap |
Connection cap |
Column tube |
O-ring |
Upper/Lower Frit |
|
ETFE |
PEEK |
PEEK |
PEEK |
Borosilicate glass |
FKM |
PP |
|
Column |
Cat.No |
Pack/pcs |
|
BHG5.0/15 |
BC033601 |
1 |
|
BHG5.0/25 |
BC030601 |
1 |
|
BHG5.0/33 |
BC030602 |
1 |
|
BHG5.0/15 Plus |
BC033602 |
1 |
|
BHG5.0/25 Plus |
BC030603 |
1 |
|
BHG5.0/33 Plus |
BC030604 |
1 |
|
BHG6.6/15 |
BC033603 |
1 |
|
BHG6.6/25 |
BC030605 |
1 |
|
BHG6.6/33 |
BC030606 |
1 |
|
BHG6.6/40 |
BC036601 |
1 |
|
BHG6.6/15 Plus |
BC033604 |
1 |
|
BHG6.6/25 Plus |
BC030607 |
1 |
|
BHG6.6/33 Plus |
BC030608 |
1 |
|
BHG6.6/40 Plus |
BC036602 |
1 |
|
BHG10/20 |
BC134601 |
1 |
|
BHG10/30 |
BC135601 |
1 |
|
BHG10/40 |
BC136601 |
1 |
|
BHG10/20 Plus |
BC134602 |
1 |
|
BHG10/30 Plus |
BC135602 |
1 |
|
BHG10/40 Plus |
BC136602 |
1 |
|
Accessories |
Item code |
Pack/pcs |
|
Tube（BHG5.0/15） |
BS013001 |
1 |
|
Tube（BHG5.0/25） |
BS014001 |
1 |
|
Tube（BHG5.0/33） |
BS015001 |
1 |
|
Tube（BHG6.6/15） |
BS013011 |
1 |
|
Tube（BHG6.6/25） |
BS014011 |
1 |
|
Tube（BHG6.6/33） |
BS015011 |
1 |
|
Tube（BHG6.6/40） |
BS016011 |
1 |
|
Tube（BHG10/20） |
BS114021 |
1 |
|
Tube（BHG10/30） |
BS115021 |
1 |
|
Tube（BHG10/40） |
BS116021 |
1 |
|
Column connector(for packing resevoir)（BHG5.0/6.6） |
BA500007 |
1 |
|
Column connector(for packing resevoir)（BHG10） |
BA500008 |
1 |
|
Adaptor O-ring（BHG5.0） |
BS030015 |
5 |
|
Adaptor O-ring（BHG6.6） |
BS030025 |
5 |
|
Adaptor O-ring（BHG10） |
BS130035 |
5 |
|
Complete upper adaptor（BHG5.0） |
BS050011 |
1 |
|
Complete lower adaptor（BHG5.0） |
BS050021 |
1 |
|
Complete upper adaptor（BHG6.6） |
BS050031 |
1 |
|
Complete lower adaptor（BHG6.6） |
BS050041 |
1 |
|
Complete upper adaptor（BHG10） |
BS150021 |
1 |
|
Complete lower adaptor（BHG10） |
BS150031 |
1 |
|
10μm sieve plate（BHG5.0） |
BS020075 |
5 |
|
10μm sieve plate（BHG6.6） |
BS020085 |
5 |
|
10μm sieve plate（BHG10） |
BS120035 |
5 |
|
25μm sieve plate（BHG5.0） |
BS020095 |
5 |
|
25μm sieve plate（BHG6.6） |
BS020105 |
5 |
|
25μm sieve plate（BHG10） |
BS120045 |
5 |
