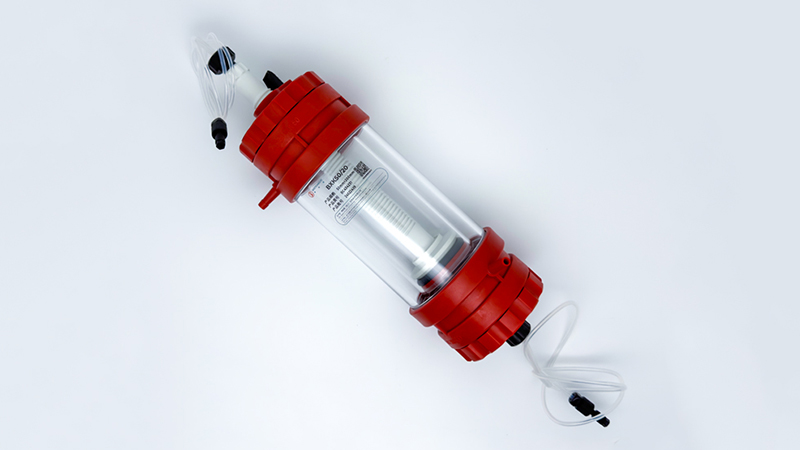

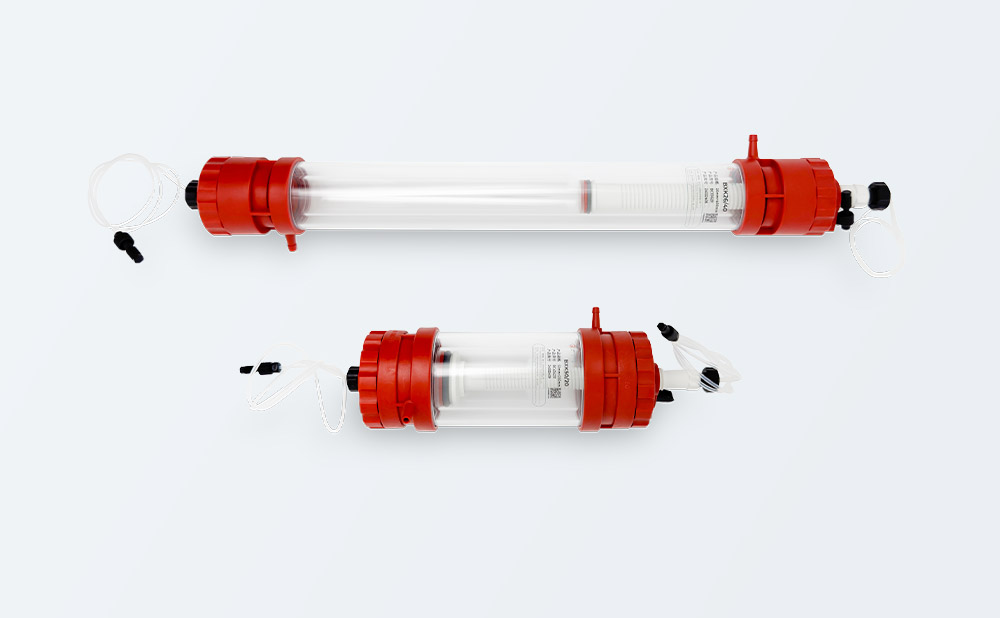

BXK16/26/50 lab-scale column is innovatively designed low pressure column. It is applicable in the processing of macro-biomolecules such as recombinant protein, antibody, vaccine and blood products, as well as R&D of micro-biomolecules such as antibiotics, peptide, synthetic drugs and other natural substances. The columns can be loaded by agarose-based, dextran-based and polymer-based resins including Bestdex,Bestarose,Chromdex. It can also be connected to chromatography systems (including AKTA). This product is composed of accessories such as a high borosilicate glass inner tube, an acrylic outer tube and a POM plastic column head, which is suitable for most aqueous solutions via providing excellent bio-compatibility and chemical resistance.
Advantages of BXK 16/26/50 lab-scale column:
1)User-friendly, easy operation.
2)Highly elastic O-ring effectively prevent leakage.
3)Evenly distributed outflow, promoting column efficiency after packing.
4)Equipped with a jacket for easy temperature control during the chromatography process.
|
Product |
Inner diameter |
Height |
Volume |
Column height |
Operating pressure |
Operating temperature(℃) |
pH stability |
Sieve aperture |
Chemical stability |
|
BXK 16/20 |
16 |
20 |
4-34 |
2-17 |
5 |
2-60 |
1-14 |
10 |
Common aqueous solutions |
|
BXK 16/40 |
16 |
40 |
44-76 |
22-37 |
|||||
|
BXK 16/40 plus |
16 |
40 |
16-54 |
8-32 |
|||||
|
BXK 16/70 |
16 |
70 |
104-134 |
52-67 |
|||||
|
BXK 16/70 plus |
16 |
70 |
68-128 |
34-64 |
|||||
|
BXK 16/100 |
16 |
100 |
164-194 |
82-97 |
|||||
|
BXK 16/100 plus |
16 |
100 |
128-188 |
64-94 |
|||||
|
BXK 26/20 |
26 |
20 |
10-90 |
2-17 |
5 |
||||
|
BXK 26/40 |
26 |
40 |
117-196 |
22-37 |
|||||
|
BXK 26/40 plus |
26 |
40 |
42-169 |
8-32 |
|||||
|
BXK 26/70 |
26 |
70 |
276-355 |
52-67 |
|||||
|
BXK 26/70 plus |
26 |
70 |
180-339 |
34-64 |
|||||
|
BXK 26/100 |
26 |
100 |
435-514 |
82-97 |
|||||
|
BXK 26/100 plus |
26 |
100 |
339-498 |
64-94 |
|||||
|
BXK 50/20 |
50 |
20 |
39-333 |
2-17 |
3 |
2-60 |
1-14 |
10 |
Common aqueous solutions |
|
BXK 50/30 |
50 |
30 |
235-529 |
12-26 |
|||||
|
BXK 50/30 plus |
50 |
30 |
0-471 |
0-24 |
|||||
|
BXK 50/60 |
50 |
60 |
823-1117 |
42-57 |
|||||
|
BXK 50/60 plus |
50 |
60 |
470-1058 |
24-54 |
|||||
|
BXK 50/100 |
50 |
100 |
1607-1901 |
82-97 |
|||||
|
BXK 50/100 plus |
50 |
100 |
1256-1845 |
64-94 |
|
Upper/Lower thin tubing |
Upper/Lower plug |
Gasket |
Tube |
Seal ring |
Upper/Lower |
Upper/lower net |
|
Fluorinated ethylene propylene copolymer(FEP) |
Polypropylene(PP) |
Polyformaldehyde |
Borosilicate glass |
Ethylene-Propylene-Diene Monomer (EPDM) |
Polypropylene(PP) |
10μm |
Note: The tubing of BXK16/26 column is made of ETFE, the tubing of BXK50 column is made of FEP.
|
Product |
Cat.No. |
PCS/Pack |
|
BXK16/20 |
BC234231 |
1 |
|
BXK16/40 |
BC236231 |
1 |
|
BXK16/40 Plus |
BC236241 |
1 |
|
BXK16/70 |
BC238231 |
1 |
|
BXK16/70 Plus |
BC238241 |
1 |
|
BXK16/100 |
BC239231 |
1 |
|
BXK16/100 Plus |
BC239241 |
1 |
|
BXK26/20 |
BC334231 |
1 |
|
BXK26/40 |
BC336231 |
1 |
|
BXK26/40 Plus |
BC336241 |
1 |
|
BXK26/70 |
BC338231 |
1 |
|
BXK26/70 Plus |
BC338241 |
1 |
|
BXK26/100 |
BC339231 |
1 |
|
BXK26/100 Plus |
BC339241 |
1 |
|
BXK50/20 |
BC434231 |
1 |
|
BXK50/30 |
BC435231 |
1 |
|
BXK50/30 Plus |
BC435241 |
1 |
|
BXK50/60 |
BC437231 |
1 |
|
BXK50/60 Plus |
BC437241 |
1 |
|
BXK50/100 |
BC439231 |
1 |
|
BXK50/100 Plus |
BC439241 |
1 |
|
Accessories |
Cat.No. |
PCS/Pack |
|
Upper adaptor (16column) |
BS250011 |
1 |
|
Column plunger (16column) |
BS200011 |
1 |
|
Lower adaptor (16column) |
BS250021 |
1 |
|
Gasket (16/26column) |
BS200025 |
5 |
|
1/16" tubing connector (16/26column) |
BS200035 |
5 |
|
10μm net (16column) |
BS220065 |
5 |
|
23μm net (16column) |
BS220075 |
5 |
|
Supporting net (16column) |
BS220035 |
5 |
|
O-ring（16 column） |
BS230015 |
5 |
|
Tube (16/20column) |
BS214001 |
1 |
|
Tube (16/40column) |
BS216001 |
1 |
|
Tube (16/70column) |
BS218001 |
1 |
|
Tube (16/100column) |
BS219001 |
1 |
|
Plastic tube (16/20column) |
BS214011 |
1 |
|
Plastic tube (16/40column) |
BS224011 |
1 |
|
Plastic tube (16/70column) |
BS218011 |
1 |
|
Plastic tube (16/100column) |
BS219011 |
1 |
|
16 packing reservoir |
B-16R |
1 |
|
16 packing reservoir bottom assembly parts |
BS-16R |
1 |
|
16/26 packing reservoir plastic casing |
BS214002 |
1 |
|
BXK16 tube connector |
BA400031 |
1 |
|
Upper adaptor (26column) |
BS350011 |
1 |
|
Plunger（26 column） |
BS300011 |
1 |
|
Lower adaptor (26column) |
BS300011 |
1 |
|
10μm net (26column) |
BS350021 |
1 |
|
23μm net (26column) |
BS320015 |
5 |
|
23μm net (26column) |
BS320025 |
5 |
|
Supporting net (16column) |
BS320035 |
5 |
|
O-ring（26 column） |
BS330005 |
5 |
|
Tube (26/20column) |
BS314001 |
1 |
|
Tube (26/40column) |
BS316001 |
1 |
|
Tube (26/70column) |
BS318001 |
1 |
|
Tube (26/100column) |
BS319001 |
1 |
|
Plastic tube (26/20column) |
BS314011 |
1 |
|
Plastic tube (26/40column) |
BS316011 |
1 |
|
Plastic tube (26/70column) |
BS318011 |
1 |
|
Plastic tube (26/100column) |
BS319011 |
1 |
|
26 packing reservoir |
B-26R |
1 |
|
26 packing reservoir bottom assembly parts |
BS-26R |
1 |
|
BXK26 tube connector |
BA400041 |
1 |
|
26 Column stand |
BA5312001 |
1 |
|
Upper adaptor (50column) |
BS450021 |
1 |
|
Column plunger (50column) |
BS400011 |
1 |
|
Lower adaptor (50column) |
BS450031 |
1 |
|
Gasket (50column) |
BS400025 |
5 |
|
10μm net (50column) |
BS420015 |
5 |
|
23μm net (50column) |
BS420025 |
5 |
|
Supporting mesh (50column) |
BS420035 |
5 |
|
O-ring (50 column) |
BS430005 |
5 |
|
Tube (50/20column) |
BS414001 |
1 |
|
Tube (50/30column) |
BS415001 |
1 |
|
Tube (50/60column) |
BS417001 |
1 |
|
Tube (50/100column) |
BS419001 |
1 |
|
Plastic tube (50/20column) |
BS414011 |
1 |
|
Plastic tube (50/30column) |
BS415011 |
1 |
|
Plastic tube (50/60column) |
BS417011 |
1 |
|
Plastic tube (50/100column) |
BS419011 |
1 |
|
50 packing reservoir plastic casing |
BS416001 |
1 |
|
50 packing reservoir |
BA449001 |
1 |
|
50packing reservoir bottom assembly parts |
BS-50R |
1 |
|
50 Column stand |
BA5412001 |
1 |
|
Column dismantling tool |
BS200041 |
1 |
|
Column stand (BXK50 column) |
BA500121 |
1 |
|
ETFE tubing fittings 0.75mm 60cm |
BS200051 |
1 |
|
ETFE tubing fittings 0.75mm 80cm |
BS200061 |
1 |
|
ETFE tubing fittings 0.75mm 100cm |
BS200071 |
1 |
|
1/16" Female thread two-way connector |
BA500001 |
5 |
|
3/16 tubing connector |
BA500003 |
5 |
|
5/16 to 1/16 reducer connector |
BA500004 |
5 |
|
3/16 tubing Ferrule |
BA500005 |
5 |
|
FEP tubing |
BA500006 |
1 |
|
Connector（luer female to 1/16 female thread） |
BA500009 |
2 |
|
Connector（M6 female thread to 1/16" male thread, 1.5mm bore） |
BA500010 |
6 |
